Specification
|
MAD.002006-81 Digital Eyepiece for Microscope
|
|
MAD.002006-82 Digital Eyepiece for Telescope
|
|
Pixel
|
350K
|
1.3M
|
2M
|
3.2M
|
5.2M
|
|
Max Resolution
|
640x480
|
1280x1024
|
1600x1200
|
2048x1536
|
2592x1944
|
|
Pixel Size
|
|
3.6um x 3.6um
|
2.8um x 2.8um
|
3.2um x 3.2um
|
2.2um x 2.2um
|
|
|
|
1/3"
|
1/2.3"
|
1/2.0"
|
1/2.5"
|
|
|
|
4.60 x3.70
|
4.73.x3.52
|
6.55x4.92
|
5.70x4.28
|
|
Sensitivity(@550nm)
|
1.9V/luxsec
|
1.0V/luxsec
|
1.0V/lux-sec
|
1.0v/lux-sec
|
0.53v/lux-sec
|
|
|
|
71dB
|
71dB
|
61dB
|
66.5dB
|
|
SN Ratio
|
45dB
|
44dB
|
42.3dB
|
43dB
|
40.5dB
|
|
|
30fps;80fps
|
15fps;26fps;30fps
|
8fps;18fps
|
10fps;22fps;43fps
|
5fps;18fps;60fps
|
| Binning |
1x1;2x2
|
1x1;2x2;4x4
|
1x1;2x2
|
1x1;2x2;3x3
|
1x1;2x2;4x4
|
|
Exposure
|
0.11~192.46ms
|
0.140~2000ms
|
0.164~2000ms
|
0.128~2000ms
|
0.21~2000ms
|
|
A/D Conveter
|
10-bit Parallel, 8-bit R.G.B to PC
|
10-bit, 8-Bit R.G.B to PC
|
10-bit, 8-Bit R.G.B to PC
|
10-bit, 8-Bit R.G.B to PC
|
12-bit, 8-Bit R.G.B to PC
|
|
Pixel
|
8.0M
|
9.0M
|
10M
|
14M
|
|
|
Max Resolution
|
3264x2448
|
3488x2616
|
3664x2748
|
4384x3288
|
|
|
Pixel Size
|
|
1.75umx1.75um
|
1.67umx1.67um
|
1.4umx1.4um
|
|
|
|
|
1/2.3"
|
1/2.3"
|
1/2.3"
|
|
|
|
|
4.60 x3.70
|
4.73.x3.52
|
6.55x4.92
|
|
|
Sensitivity(@550nm)
|
0.31V/luxsec
|
0.33V/luxsec
|
0.31V/lux-sec
|
0.724v/lux-sec
|
|
|
|
|
62.7dB
|
65.2dB
|
65.3dB
|
|
|
SN Ratio
|
34dB
|
34dB
|
34dB
|
35.5dB
|
|
|
|
1.9fps;8fps;27fps
|
2fps;9fps;27fps
|
2fps;8fps;27fps
|
2fps
|
|
| Binning |
1x1;2x2;4x4
|
|
|
Exposure
|
0.38~2000ms
|
0.38~2000ms
|
0.38~2000ms
|
0.4~2000ms
|
|
| A/D Conveter |
12-bit Parallel, 8-bit R.G.B to PC
|
|
|
|
USB 2.0,support No driver required.
|
|
MAD.002006 general Detail Specification
|
| Scan Mode |
Progressive |
| Spectral Range |
400-650nm (with IR-Filter) 380-1000nm (w/o IR-Filter) |
| Exposure |
Electronic Rolling Snap(ERS),ROI Auto & Manual, |
| White balance |
One Push ROI White Balance/ Manual Temp-Tint Adjustment |
| Driver Interfaces |
DirectShow , Twain |
| Operating System |
Microsoft Windows XP / Vista / 7 (32 & 64 bit)
CPU: Intel Pentium 4, 2.6G or above
RAM: 512 MB
HDD: 10 GB
USB: USB2.0 interface |
| Operating Temp. |
-10~60℃ |
| Operating Humidity |
30%~80% |
| Power Supply |
DC 5V from PC USB port |

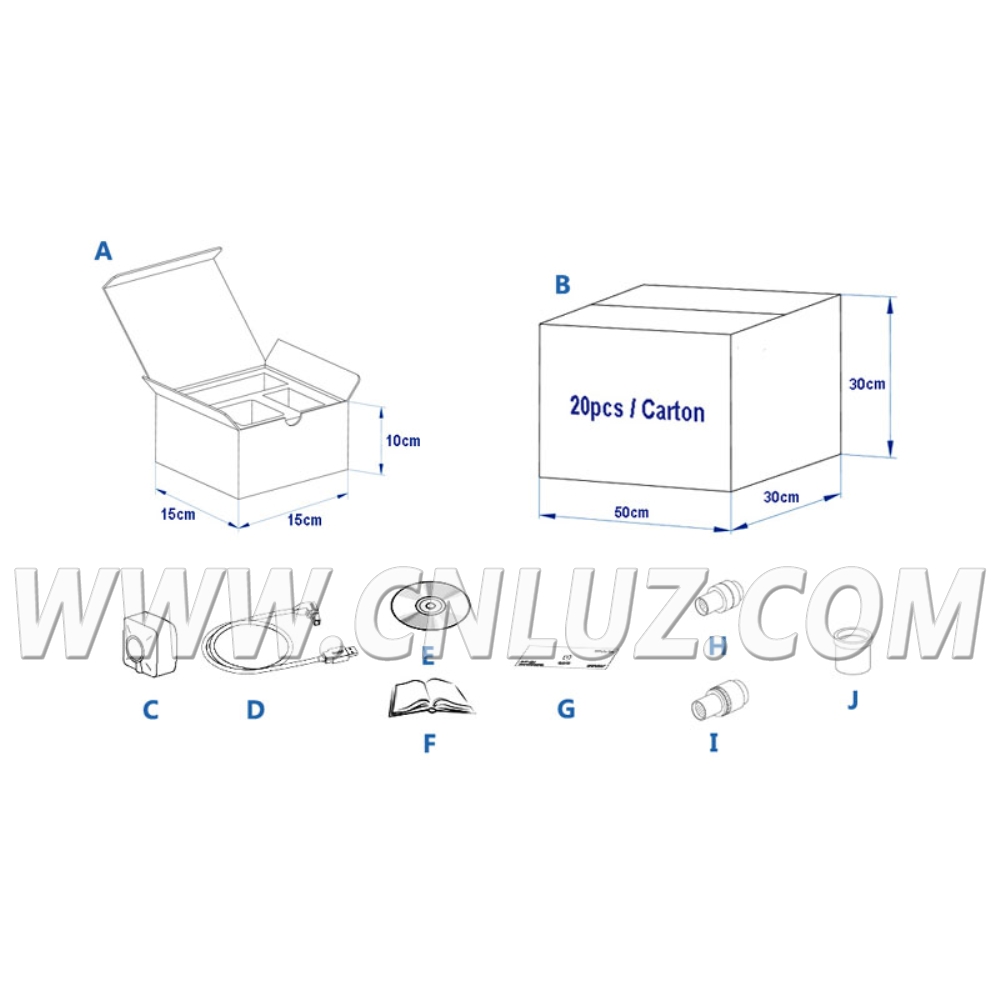

| Package Box |
140mmx140mmx80mm, 0.5Kgs |
| Color Rendering Technique |
Ultra FineTM Color Engine |
| Capture Mode |
Still Picture and Video |
| Remarks |
Actual frame rates on your computer depend on the hardware and operating system used |
|
MAD.002006 Software Features
|
| Main Functions |
Viewing live images; Streaming & recording live videos; Capturing & saving still images; Making measurements |
| Processing |
-Edits images in a similar manner to PhotoShop
-Captures images, records videos and saves in JPG, TIF, GIF, PSD, WMF, and BMP formats
-Add layers, watermarks, mosaics, tiles
-Adjust color balance, exposure, saturation, contrast, orientation
-Change resolution, histogram, granulation, diffusion
-Transform images via edge detection, digital image warping |
| Measurement |
Measures length and angle; rectangular, elliptical and irregular areas; single, parallel and perpendicular lines |
| Notation |
Adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors |
| Calibration |
Makes measurements in microns, millimeters, centimeters, inches, feet, and etc. at all magnification settings with desired tolerances |
|
MAD.002006 Driver Characteristics
|
| White Balance |
ROI auto white balance/temp-tint manual white balance |
| Black Level Calibration |
Adaptive black level calibration |
| Stuck or Hot Pixel |
Hardware remove technique |
| USB Controller Compatibility |
Automatic detection of adaptation |
| Interfaces Supported |
DirectShow/TWAIN |
| Operating System |
Microsoft Windows XP / Vista / 7 (32 & 64 bit) |
| |
