Specification
|
MAC.006001
|
|
Image Senser
|
CMOS, Color, Progressive scan
|
| Optical Format |
1/2.5-inch(4:3)
|
|
Active Image Siza
|
5.70mm(H)x4.28m(V) |
|
Active Pixels
|
2592Hx1944V |
|
Pixel Size
|
2.2x2.2μm |
|
Shutter Type
|
Global reset release(GRE), snapshot only, electronic rolling shuttrt(ERS) |
|
Color Filter Array
|
RGB bayer pattern |
|
ADC Resolution
|
12-bit |
|
SNRMAZ
|
38.1db |
|
Pixel Dynamic Range
|
70.1db |
|
Operating Temperature
|
-10°C to +50°C |
|
Photo Resolution
|
2592x1944/1920x1280/1280x720/640x480. Selectable resolutions for capturing images |
|
Video Size
|
720P/15fps |
|
Exposure Setting
|
Automatic/manual |
|
White Balance Setting
|
Automatic/manual |
|
Data Interface
|
USB2.0 |
|
Lens Mount
|
Adjuctable C-mount standard |
|
Operating Systems
|
Windows XP/Vista/ Win7(32 and 64-bit) |
| Measuring Software | VMS3.5, Multi languages |
|

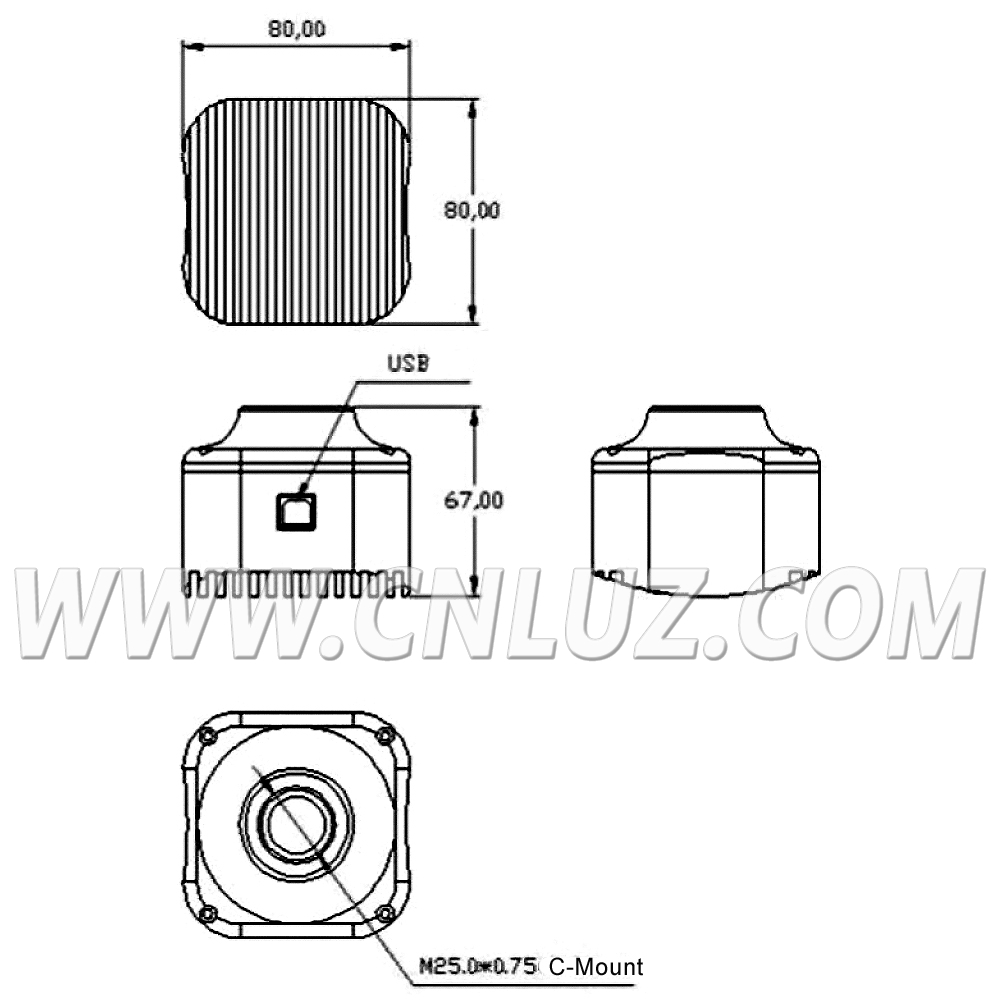

Size(mm)
|
80*80*67 |
