MAC.006003Digital Camera, 5M, CMOS, HDMI

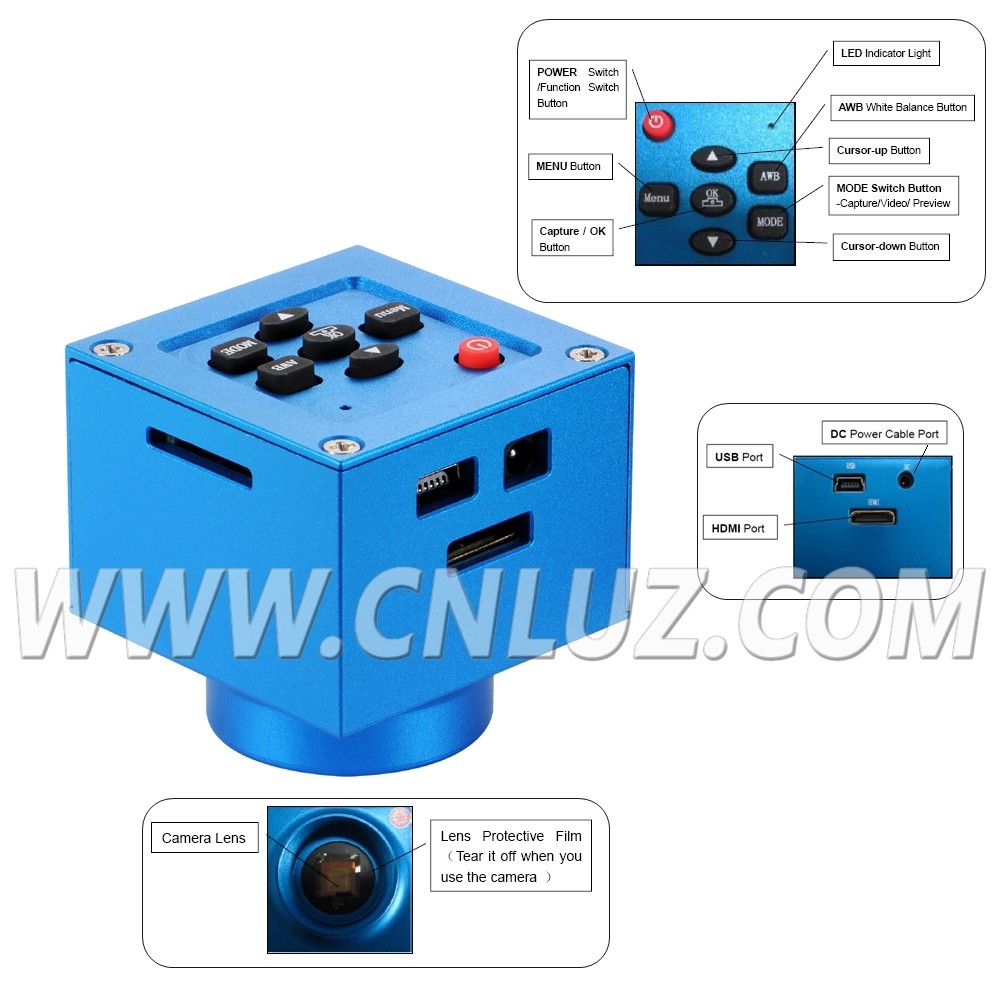

  • /usr/575/images/Products/Y/57517673.jpg

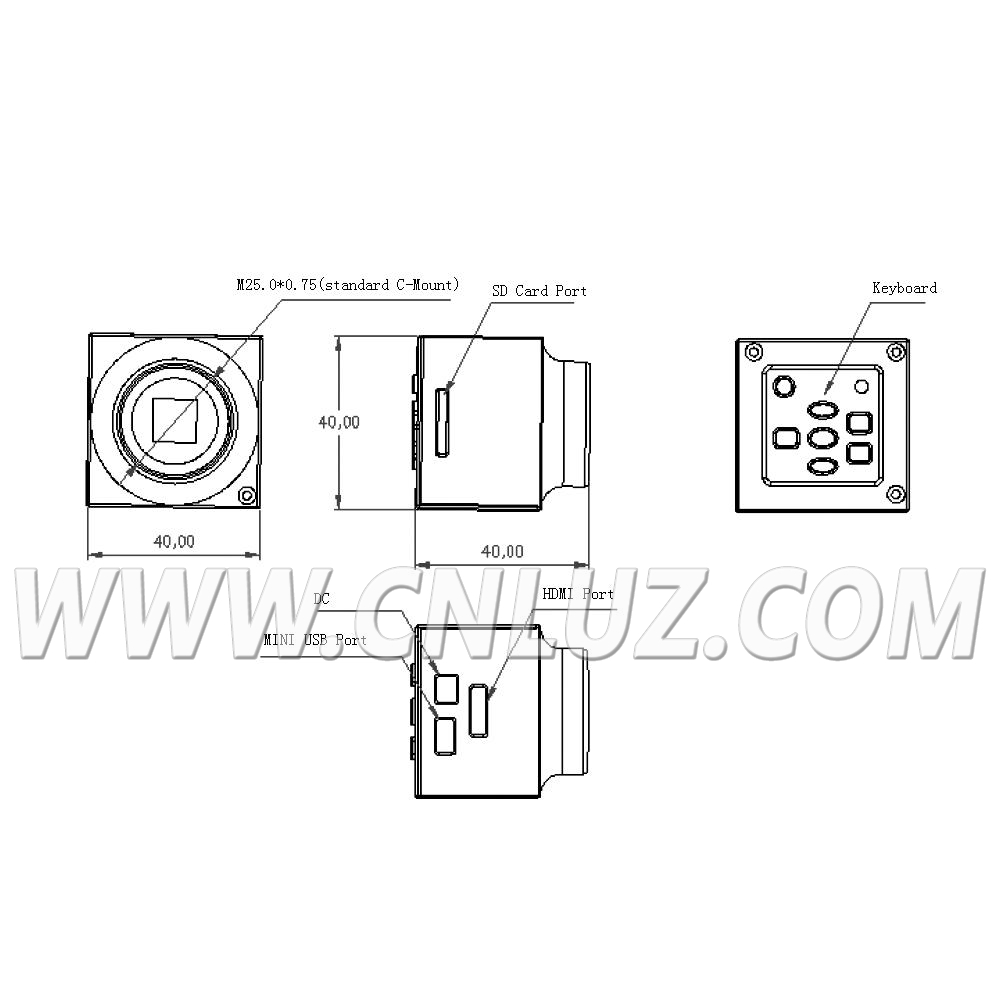

  • /usr/575/Picture/Y/10745.jpg
  •
  •
  • HDMI 1080p multi-mode microscope camera.
  • This camera can be operated on HDMI screen independently or process image via USB2.0 without connecting with PC.
  • The fast change responding speed and short responding time .
Specification
MAC.006003
Image Senser
CMOS, Color, Progressive scan
Optical Format
1/2.5-inch(4:3)
Active Image Size
5.70mm(H)x4.28m(V)
Active Pixels
2592Hx1944V
Pixel Size
2.2x2.2μm
Shutter Type
Global reset release(GRE), snapshot only, electronic rolling shuttrt(ERS)
Color Filter Array
RGB bayer pattern
ADC Resolution
12-bit
SNRMAZ
38.1db
Pixel Dynamic Range
70.1db
Operating Temperature
-30°C to +50°C
Photo Resolution
2592x1944/1920x1280/1280x720. Selectable resolutions for capturing images
Video Size
720P/30fps/1080P/15fps
Exposure Setting
Automatic/manual
White Balance Setting

Auto/Manual
Preset:3 modes for the color temperature of light scource,
One-press button control AWB

Control Interface Plastic button control
Data Interface
HDMI, USB2.0, Mini SD Card (4G included)
Lens Mount
Adjuctable C-mount standard
Operating Systems
Windows XP/Vista/ Win7(32 and 64-bit) under USB2.0 mode
Measuring Software VMS3.5, Multi languages
Power Supply DC 5V/2A
