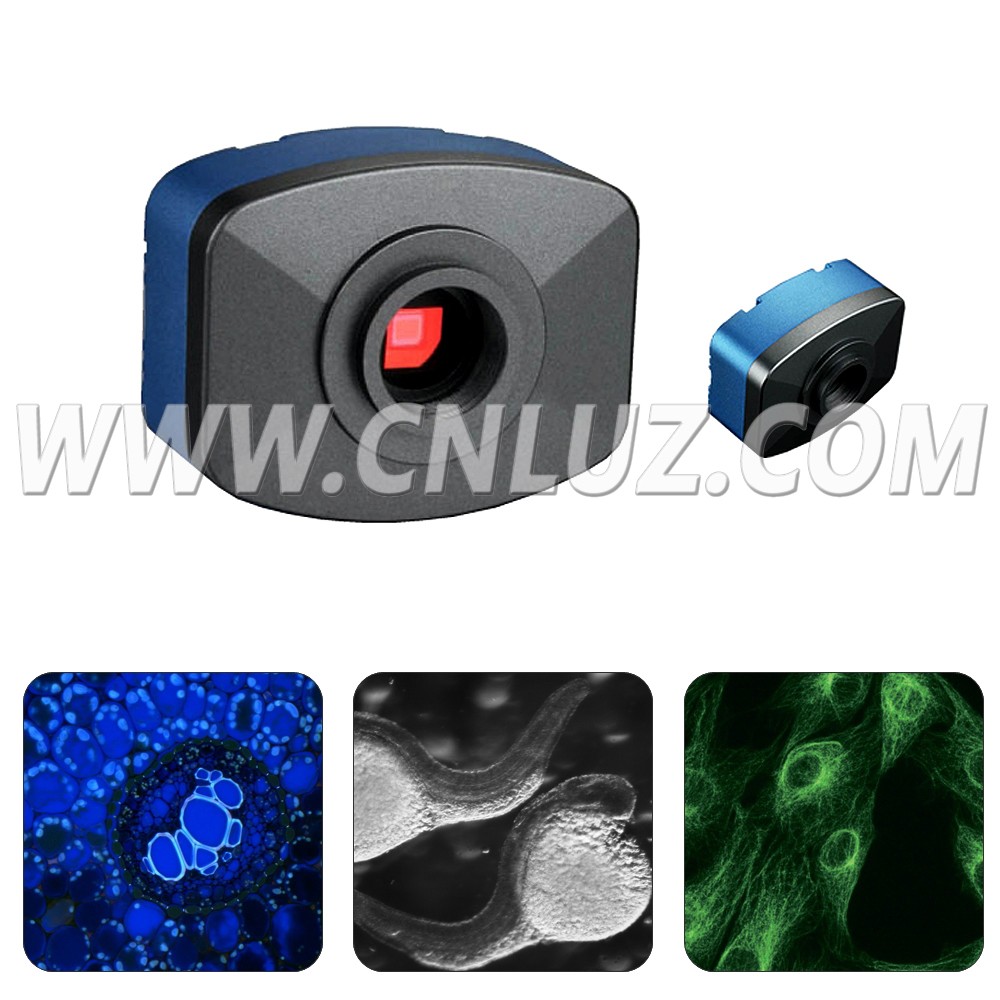

MAC.033005Digital Camera,1.4M,2/3''CCD,USB2.0
- 1.4MP CCD Microscope Camera,2/3" large sensor size,
- USB2.0 date output
|
|
|
MAC.033005-C
|
| Sensor |
Sony,CCD,ICX285AL |
Sony,CCD,ICX285AQ |
| Color/monochrome |
Monochrome |
Color |
| Sensor Size |
2/3" |
| Effective Pixels |
1.4MP |
| CCD Scan Mode |
Progressive |
| Pixel Size |
6.45umX6.45um |
| Resolution(HXV) |
1360X1024 |
| Frame Rate |
13fps (1360X1024 Full Frame) / 15fps(680X520) |
| Shutter |
Electronic Shutter |
| G Sensitive |
1300mv |
1240mv |
| A/D |
12bit |
|
Low Speed Readout
|
Yes |
| Exposure Control |
Auto / Manual |
| Exposure Time (s) |
0.001-3600 |
| White Balance |
Auto / Manual |
| Gain |
Hardware gain adjusting |
|
Parameter
|
Image size、bright、gain、exposure |
|
Angle Light Prohibition
|
Yes |
No |
| Data Interface |
USB2.0 |
| Operating Temperature |
0-60℃ |
| Operating Humidity |
45%-85% |
| Storage Temperature |
-20-70℃ |
| Lens Interface |
C-Mount |
| Dimension |
100mmX81mmX48mm |
| Weight |
480g |
| Power |
12V |
| Operating System |
Windows / Linux / Mac |
|
| |
