MAC.033007Digital Camera,2.8M,2/3''Cooled CCD,USB2.0
  • /usr/575/images/Products/Y/57518286.jpg
  • /usr/575/Picture/Y/11359.jpg
  •
  •

High resolution, High sensitivity, High dynamic range, Wide field of view Research grade cooled CCD New generation camera.

  • MAC.033007-N：Non-cooled,monochrome,idea for short exposure time imaging
  • MAC.033007-C：Cooled monochrome camera,idea for fluorescence imaging
  • MAC.033007-CT：Cooled monochrome camera with temperature control,idea for quantitative imaging
Specification
MAC.033007-N
MAC.033007-C
MAC.033007-CT
Sensor Sony CCD, ICX674AlG
Color/monochrome Monochrome
Sensor Size 2/3"
Effective Pixels 2.8MP
CCD Scan Mode Progressive
Pixel Size 4.54umX4.54um
Resolution(HXV) 1920X1460
Frame Rate 7fps (1912X1452 Full Frame) / 17fps(952X720 2X2 Bin)
Binning 2X2 / 4X4
Readout Noise 5.5e-

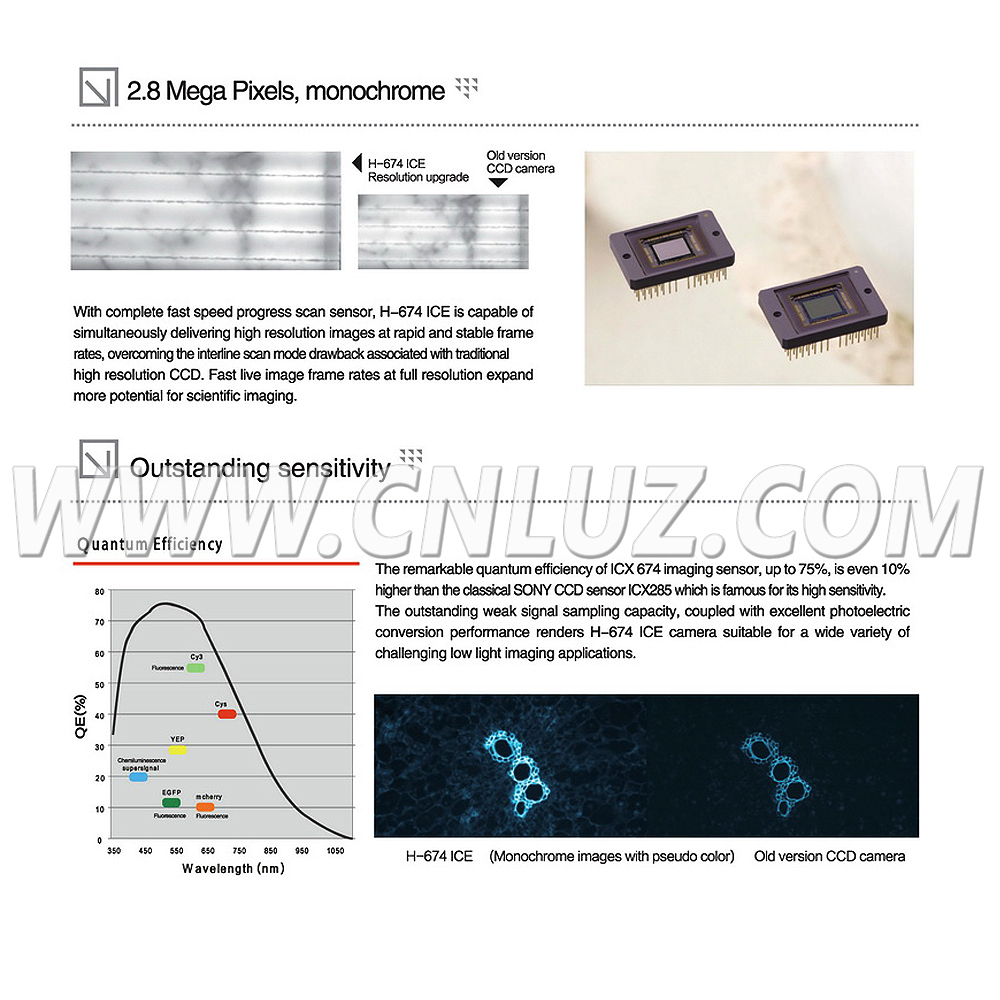

Quantum Efficiency 75%@600nm
Full Well Capacity 16000e-
Dynamic Range 69.8dB
Cool Type   Peltier Class(0℃) Peltier Class(-20℃)
Temperature Control No No Yes
Dark Noise 1e/pixel/s 0.07e/pixel/s 0.01e/pixel/s
A/D 12bit
Low Speed Readout
 Yes
Exposure Control Auto / Manual
Exposure Time (s) 1ms-20min 1ms-160min 1ms-160min
White Balance Auto / Manual
Gain Hardware gain adjusting
Parameter
 Image size、bright、gain、exposure、RGB
Data Interface USB2.0 /480Mb/s
USB Cable 1.8meter
USB Power Supply USB2.0
Operating Temperature 0-60℃
Operating Humidity 45%-85%
Storage Temperature -20-70℃
Lens Interface C-Mount
