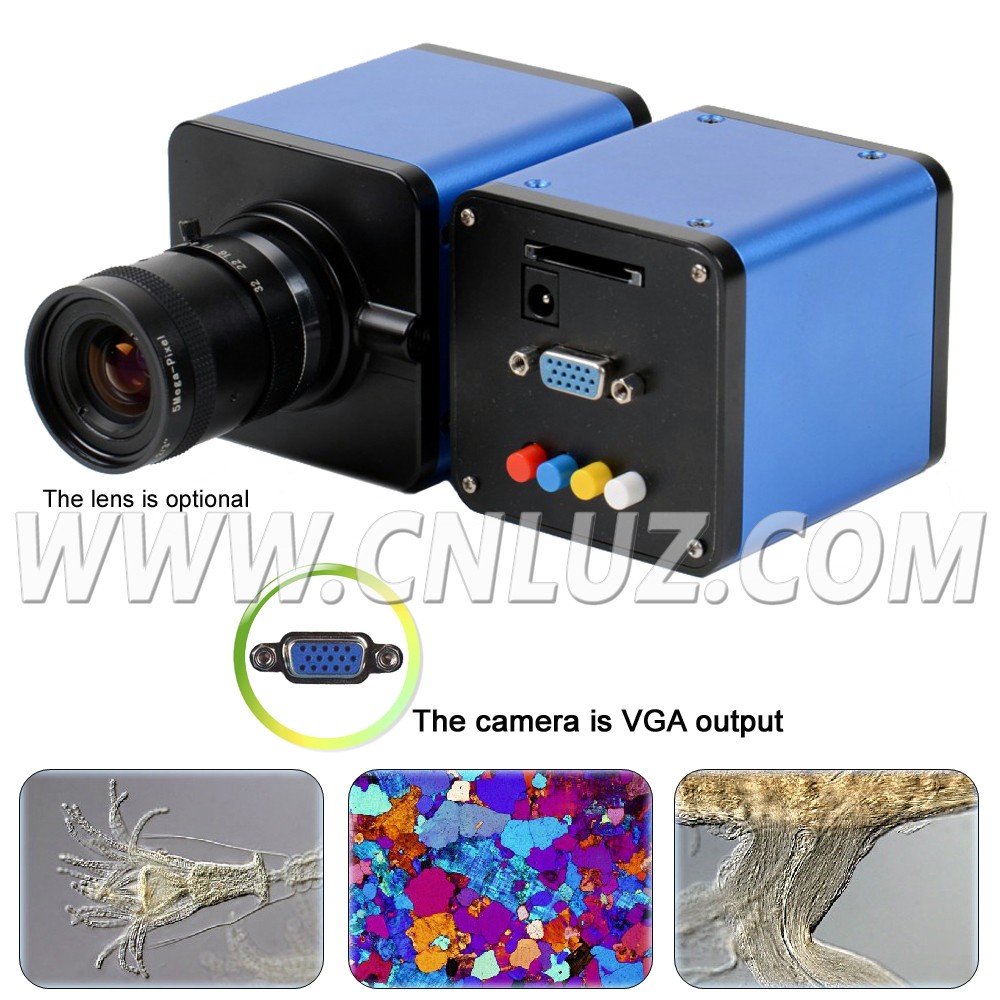

MAC.002010Digital Camera,5M,CMOS,720P,VGA
- VGA Output
- 1/2.5’’ CMOS sensor,color
- 5M pixels,720P
- Standard C-Mount
- Support SD card storage
- >30fps,high frame rate
|
|
|
| Image Pickup Device |
Aptina MT9P03 CMOS(Color) |
| Sensor Size (Diagonal) |
1/2.5“ (5.70mm(H) x 4.28mm(V), Diagonal 7.13mm) |
| Pixel Size |
2.2μm x 2.2μm |
| Max. Resolution |
1280 x 720 (16:9) |
| Scan Mode |
Progressive |
| Frame Rate |
30fps @1280 x 960 |
| Spectral Range |
380-650nm (with IR-filter) |
| A/D Converter |
12-bit Parallel, 8-bit R.G.B |
| Dynamic Range |
70.1dB |
| SN Ratio |
38.1dB |
| G Sensitivity |
1.4v/lux-sec(550nm) |
| Binning |
1 x 1 |
| Exposure |
0.21~33ms,Auto & Manual |
| White balance |
Auto / Manual |
| Color Rendering Technique |
Ultra Fine Color Engine |
| Cooling System* |
Natural |
| INTERFACE |
- 1XVGA Output Port
- 1X SD Card Slot
- 1X Power Input Slot
- 1X Remote Switch Slot
|
| Width X Depth X Height |
68mm (2.67") X 68mm (2.67") X 92mm (3.62") |
| Power Supply |
DC 5V over PC USB Port |
| Shipping Weight |
0.25 kg (0.55lbs) |
| Operating Temperature |
-10℃~ 50℃ |
| Storage Temperature |
-20℃~ 60℃ |
| Operating Humidity |
30~80%RH |
| Storage Humidity |
10~60%RH |
|
RED Button
|
Cursor ON/OFF
|
|
BLUE Button
|
Save Image to SD Card
|
|
YELLOW Button
|
AEWB ON/OFF
|
|
WHITE Button
|
VIDEO Stream/Freeze
|
|
| |
|
|
|
| Cable |
VGA Cable |
| Memory Card |
SD Card |
| Remote Image Save Switch |
2.5mm Headphone Jack Remote Image Save Switch |
|
