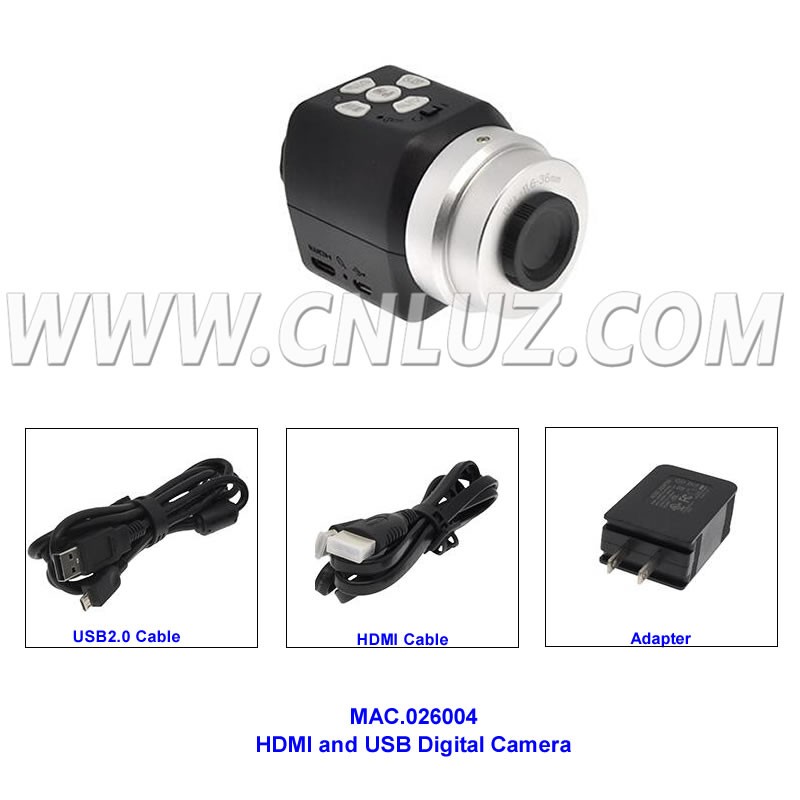

MAC.026004HDMI and USB Digital Camera
  • /usr/575/images/Products/Y/57520518.jpg
  • /usr/575/Picture/Y/11644.jpg
  • /usr/575/Picture/Y/11645.jpg
  •

MAC.026004 HIMI and USB Dual Output Digital Camera is with high quality image and video performance to meet high-precision requirements on scientific research, inspection lines in modern electronics and other technology industries



  • HDMI and USB Dual Output Digital Camera with Standard C-mount
  • Can take Pictures in JPG, record the video in MOV.
  • Both Image and Video are in High Quality.
Specification
MAC.026004 HDMI and USB Digital Camera
Sensor APtina Ar0990 CMOS Sensor
Senser Size 1/3" (5.07mm(H) x 3.38mm(V), 6.09mm
Pixel Size
2.2μm x 2.2μm
Resolution 2592 x 1536
Video Mode Resolution 1080P@30fps, 720P@30fps, WVGA30fps
Capture Mode Resolution 2304 x 1536 ; 2304 x 1296; 1920x1080; 1280x720; 800x480
Focus Mode Real-time Auto-focus
White Balance Automatic Real-time, Single-automatic, Manual adjustment
SN Ratio 39dB
Dynamic Range 69.5dB
Spectral Response 380-650nm
Exposure Wide Range Auto/manual Exposure
Power supply DC 5V USB power supply by PC
Operating System Microsoft; Windows; XP / 7 / 8 /8.1/10(32 & 64 bit)
Hardware Requiremen CPU: Intel Core 2.8GHZ or Above
Memory: 2GB or Above
USB Port: 2.0
DVD-ROM(Required When Installing Software)
Connecting C-mount (1" x 1/32) BFL:11.6-36mm
HDMI : TYPEC(Mini HDMI)
USB: Micro USB
Product Size Dia. 59mm * Height 63mm * Lenth 101mm
Single Packing Size 11cm*15cm*63*cm
