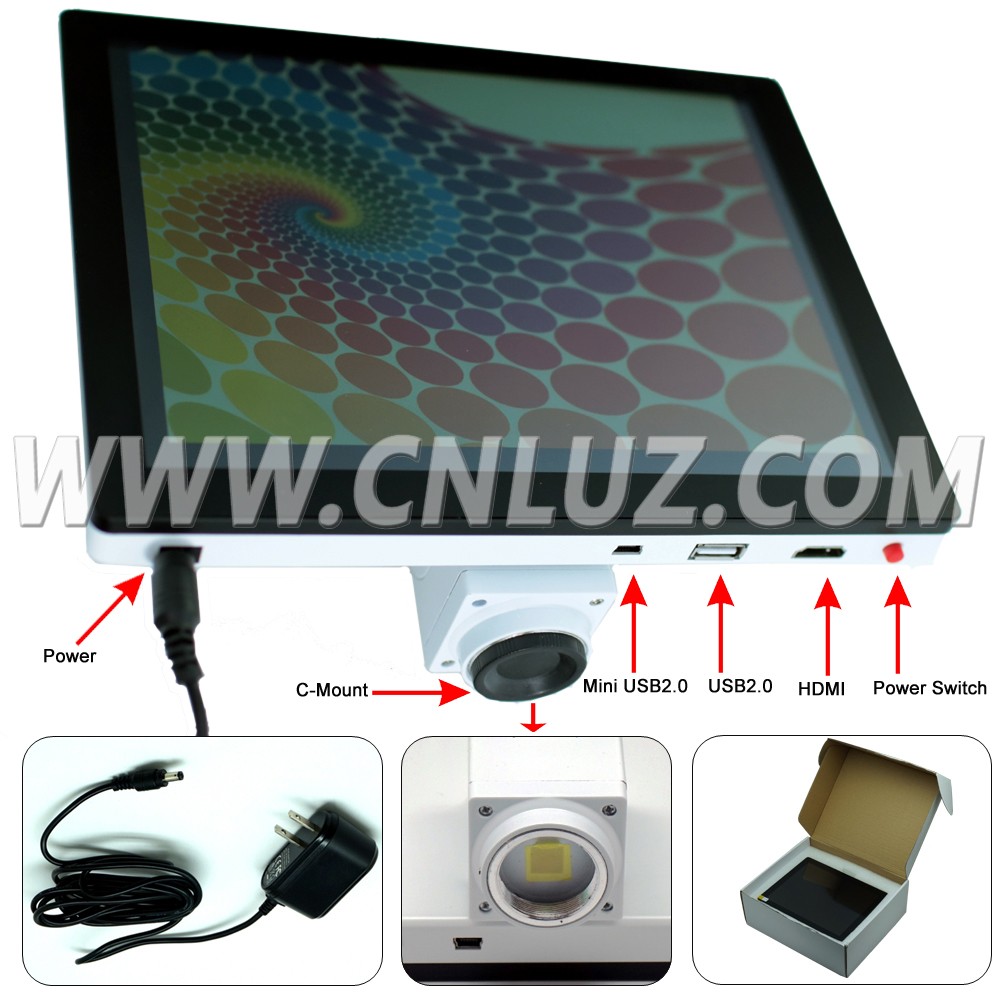

MAT.0410019.7" LCD Pad , Andriod, 5M CMOS, HDMI/USB2.0
  • /usr/575/images/Products/Y/57518355.jpg
  • /usr/575/Picture/Y/11401.jpg
  •
  •
  • The device can be widely used in scientific research, industry, teaching and so on, powerful performance, reliable quality
  • 9.7 Inch (Diagonal) IPS liquid crystal display, resolution 1024*768
  • The USB interface of the CMOS camera, real-time display, support treatment, storage, network and other functions
  • The built-in high performance special 2D processor, support 1080P multiple formats of video decoding, support for stereo 3D H.264 MVC video coding
  • Supports a variety of memory, including DDRIII, DDRII and LPDDRII, the digital image signal can be output with high resolution.
  • The system has strong scalability, can choose a variety of accessories according to different needs, such as bright field, dark field, phase contrast, polarization etc..
  • The operating system uses the Android 4.2.
MAT.041001 9.7" LCD Pad with Andriod System
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LED
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch
CPU

1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System

RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser

1/2.5" CMOS, Color, Aptina MT9P001

Resolution
5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-MountInterface
