MAD.002020Digital CMOS Eyepiece, 3.1M to14M, USB3.0
  • /usr/575/images/Products/Y/57518440.jpg
  •
  •
  •

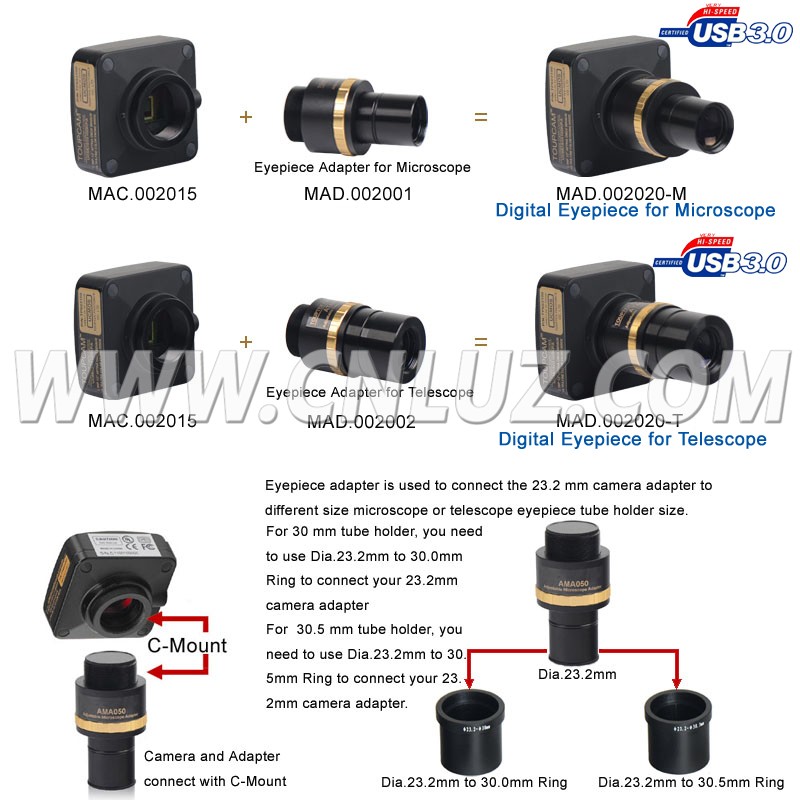

  • USB3.0 Camera+ Eye tube=Digital Eyepiece
  • Large pixel size, High sensitivity , CMOS sensor
  • The Camera overall dimension:68mm X 68 mmX 45mm
  • Operating System :Windows ,Mac OS X,Linux
Model
MAD.002020-M   Digital Eyepiece for Microscope,USB3.0
MAD.002020-T   Digital Eyepiece for Telescope,USB3.0
Pixel
3.1M
5.0M
8.0M
10M
14M
Max Resolution
2048x1536
2560x1992
3328x2548
3584x2748
4096x3288
CMOS Sensor Type
(Color )
Aptina AR0330
AptinaMT9P006
Aptina Special
Aptina MT9J003
Aptina MT9F002
Pixel Size
2.2um x2.2um
2.2um x2.2um
1.67um x1.67um
1.67um x1.67um
1.4um x1.4um
CMOS Sensor
1/3"
1/2.5"
1/2.3"
1/2.2"
1/2.3"
Sensor Size (mm)
4.80(H) x 3.60(V), Diagonal 6.0
5.70(H) x 4.28(V), Diagonal 7.13
6.44(H) x 4.616(V), Diagonal 7.923
6.119(H) x 4.589(V), Diagonal 7.649
6.138(H) x 4.603(V), Diagonal 7.672
Sensitivity
2.0v/lux-sec(550nm)
0.76v/lux-sec(550nm)
0.31v/lux-sec(550nm)
0.31v/lux-sec(550nm)
0.724v/lux-sec(550nm)
DynamicRange
72.4dB
67.74dB
71dB
61dB
66.5dB
SN Ratio
39dB
38.5dB
34dB
34dB
35.5dB
Frame Rate
2048*1534/27.4fps
1024*770/53.3fps
(Multiple Speed Level)

2560*1922/ 14.5fps
1280*960/39fps
640*480/101fps

3584*2746/8.3fps
1664*1272/27fps
(Multiple Speed Level)
35844*2746/7.2fps
1972*1372/ 25fps
(Multiple Speed Level)
4096*3286/6.2fps
2048*1644/21fps
1024*822/54fps
Binning
1x1;2x2
1x1;2x2;4x4
1x1;2x2
1x1;2x2;3x3
1x1;2x2;4x4
Exposure
(ROI Auto & Manual )
0.1~2000ms
0.05~2000ms
0.1~2000ms
0.38~2000ms
0.4~2000ms
Binning
1*1, 2*2
1*1, 2*2, 4*4
1*1, 2*2
1*1, 2*2, 4*4
/
A/D Conveter
12-bit Parallel, 8-Bit R.G.B to PC
Output
USB 3.0,support No driver required.
Scan Mode
Progressive
Spectral Range
380-650nm (with IR-Filter)
White balance
ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique
Ultra Fine Color Engine
Peak Quantum Efficiency
N/A
Readout Noise
N/A
Extinction Ratio
N/A
Smear
N/A
Capture/Control API
Native C/C++, C#, Directshow, Twain, Labview
Recording System
Still Picture and Movie
Cooling System
Natural
Operating Temperature
-10~50℃
Storage Temperature
-20℃~ 60℃
Operating Humidity
30%~80%RH
Storage Humidity
10~60%RH
Power Supply
DC 5V from PC USB port
Operating System
Microsoft Windows XP / Vista / 7 (32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements
  • CPU: Equal to Intel Core2 2.8GHz or Higher
  • Memory: 2GB or More
  • USB port: USB2.0 High-speed Port
  • Display: 17" or Larger
  • CD-ROM
