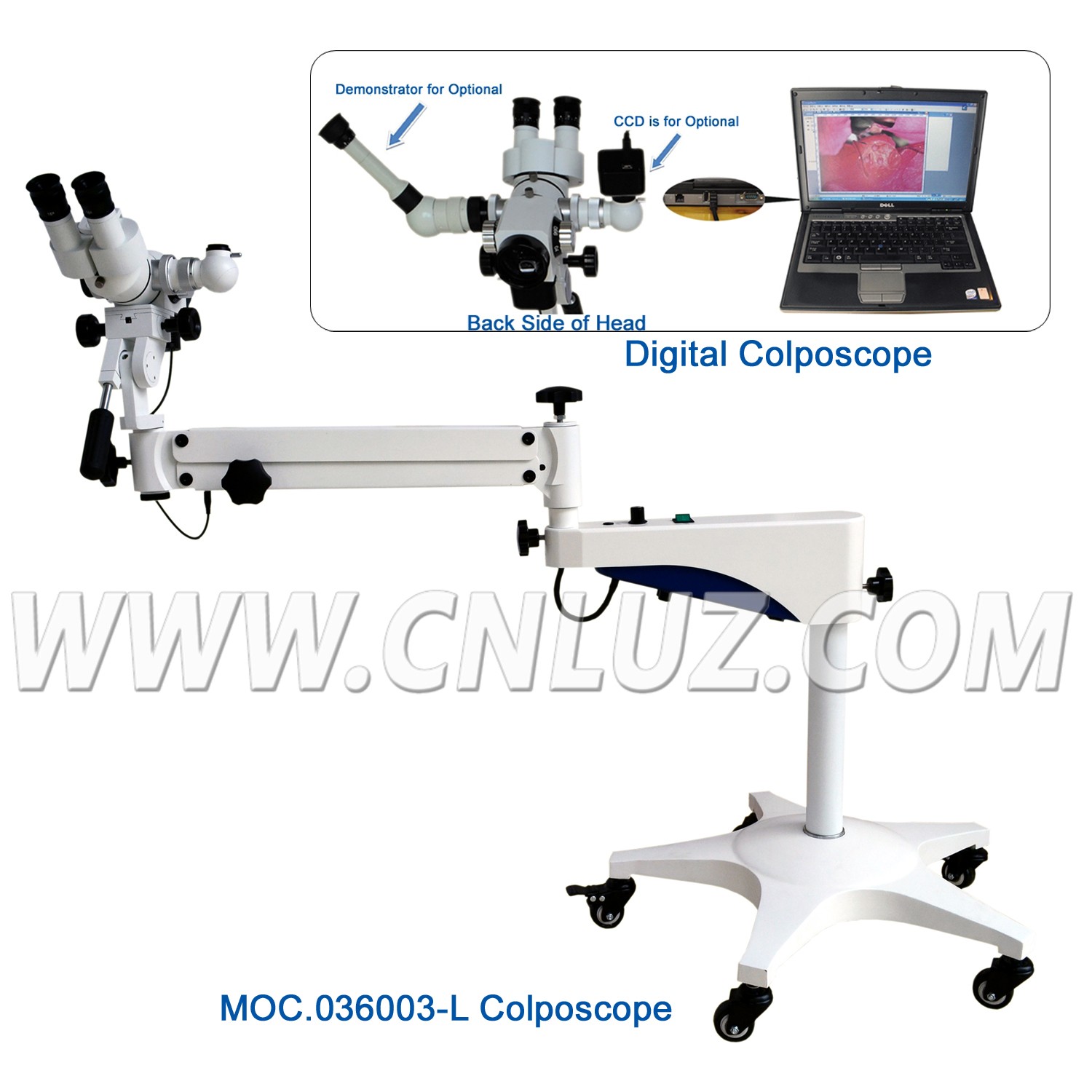

MOC.036003Colposcope, 2.7X/4.4X/6.6X/10X/16.6X
  • /usr/575/images/Products/Y/57518445.jpg
  • /usr/575/Picture/Y/11466.jpg
  • /usr/575/Picture/Y/11467.jpg
  •

MOC.036003 Series Colposcopes are precise optical instruments designed especially for the gynecologic examination and diagnosis. Due to the magnification of the instrument, the pathological changes in the vagina, which is impossibly viewed with naked eyes, can be clearly seen with the instrument. Therefore, the correctness of a diagnosis is enhanced significantly. MOC.036003 Series Colposcopes are featured for sharp image, wide field of view, uniform illumination, adjustable brightness and easy operation. They are the essential instruments for gynecologic examination.

Specification
MOC.036003-L

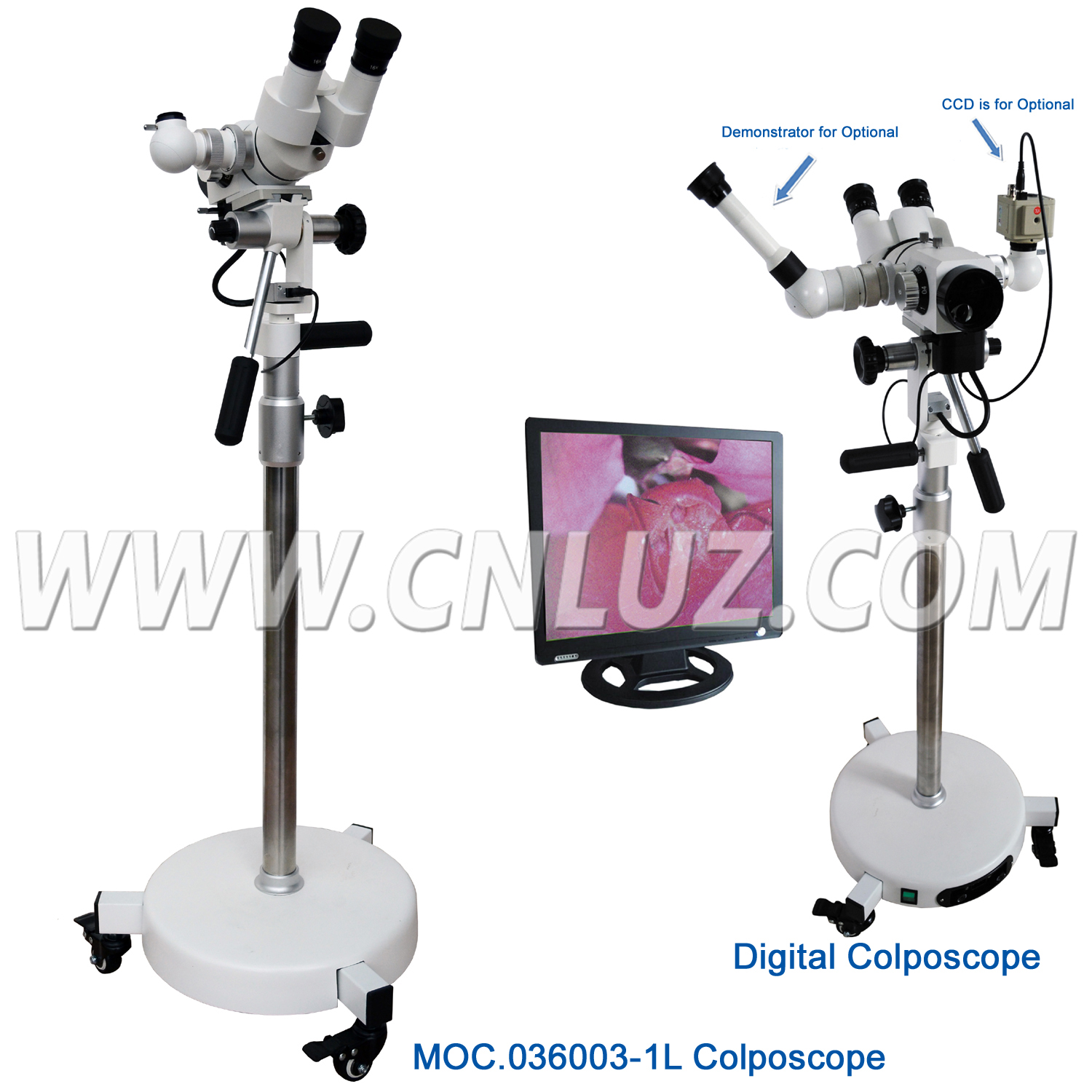

MOC.036003-1L

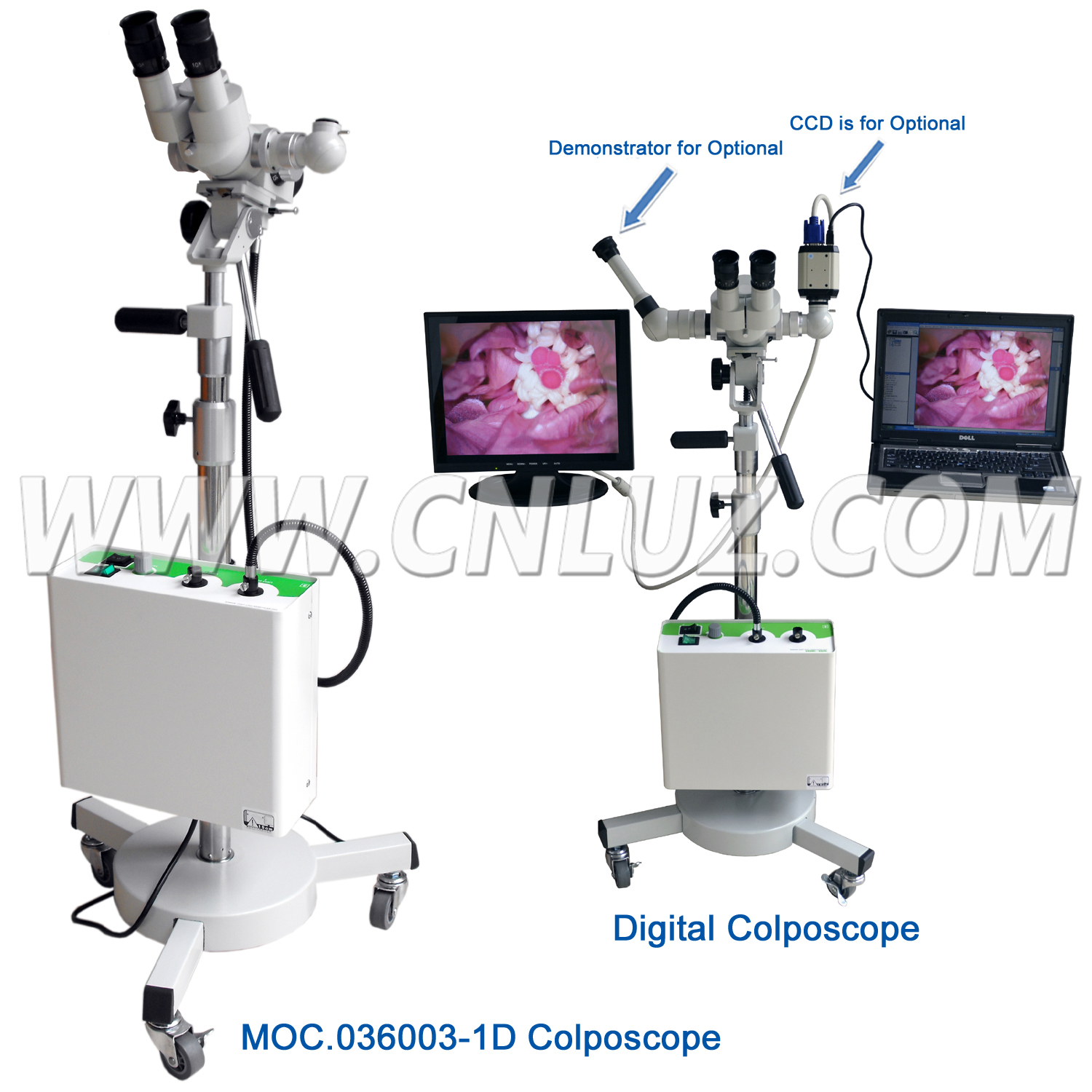

MOC.036003-1D
Head 45°Tilted Binocular
Eyepiece 16X,Interpupillary Distance: 50mm-80mm;Diopter: ±5D
Focal Length Of Objective 300mm
Magnification Changer 5-step magnification change: 0.4x, 0.66x, 1x, 1.5x, 2.5x
Total Magnification 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear Field 90mm, 55mm, 37mm, 24mm, 15mm
Beamsplitter
50:50
Filter Build-in green & blue filter
TV adapter
C-mount 1/3" CCD camera attachable
Power supply AC100V-240V
Fine Focusing Range 20mm
60mm
Balancing Arm Counterweight adjustable and can be locked
NO
Stand
Short column fitted on the five-star base
Column height adjustable fitted on the round base with 3 jaws
Illumination Coaxial illumination with 10W LED light source, brightness adjustable >20000lux Coaxial illumination with 10W LED light source, brightness adjustable >20000lux Coaxial illumination with cold light source fiber-optic cable, 24V150W dual halogen lampbrightness adjustable; >15000lux
Gross Weights 48kg 22kg 24kg

Item
MOC.036003 Optional Accessory
Objective F=230mm & F=280mm
Demonstrator MOC.036003-DS
Photo Adapter MOC.036003-PA
