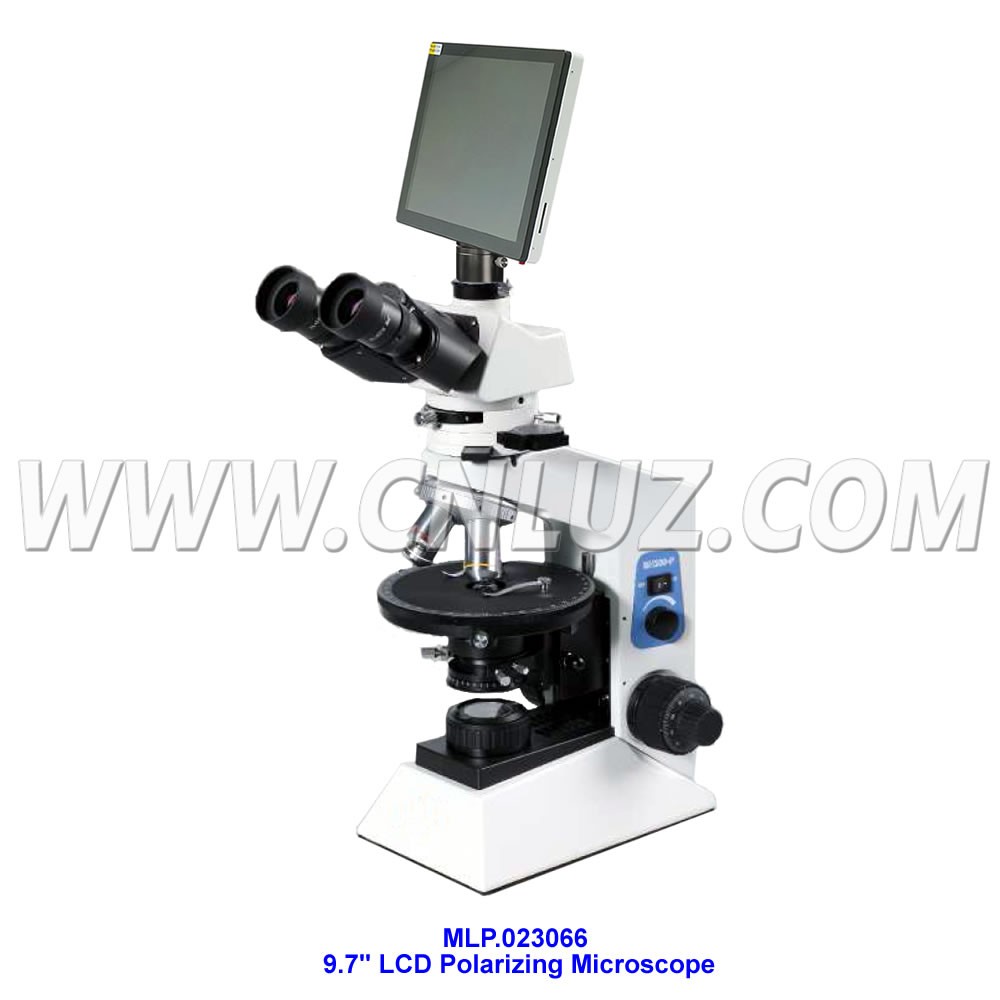

MLP.023066LCD Polarizing Microscope,
  • /usr/575/images/Products/Y/57520250.jpg
  • /usr/575/Picture/Y/11621.jpg
  • /usr/575/Picture/Y/11622.jpg
  • LCD Polarizing Microscope
  • 9.7’’ LCD Screen,resolution 1024*768
  • 5.0M CMOS Image Sensor built-in
  • Plan destressing objectives provide excellent image and high definition.
  • Professional metal rotary stage, particularly craftwork,wear-resistant and resist ing corrode. Smooth rotating, comfortable operation, with locking device, very easy to use.
  • Koehler illuminator systems, wide-range voltage, effectively protect and extend the life of bulbs.
  • Bertrand lens using the handle rotating structure, circular focus, more convenient and simple operation, reliable performance.
  • Widely used in component analysis and identification on on a variety of mineral specimens and sample slices under polarized light.
9.7" LCD Pad with Andriod System of MLP.023066
Specification of LCD PAD
LCD Screen 9.7" HD Diagonal IPS LCD
Resolution 1024*768
Backlight Screen,
Five Point Touch Screen,
Hardware Power Switch

1.6GHz Four Core ARM Mali-400 MP GPU
Support OpenGL ES 1.1/2.0 And OpenVG 1.1
Support Full HD 1080p
Support Android 4.2 System

RAM 2GB, Support DDR3, DDR2, LPDDR2
Data Storage SD Card Slot, Support Max 32GB C10 High Speed SD Card
Data Interface HDMI, Mini USB2.0, USB 2.0
Operation System Android 4.2 System, Multi Language
Power Wide Voltage AC 100~240V, DC 5V/2A with External Power Adaptor,
Power Mode : Normal, Sleep, Power Off
WIFI Support
Bluetooth Support
Software YX Camera Installed,
--Can Adjust Real Time Image
--Can Measure Length, Area, Angle, Count
--Can Take Picture, Record Video
YX Image Installed
--Grey, Contrast, Brightness Adjust
--Binary Image For Granular Count
Both Software Chinese/English Version, With Instruction Manual Installed
Product Size Pad 17.5*22.5*2.0cm
Package Size Packing Box 10*24*29cm, 1 pc/Box
Specification of Digital Camera Senser

1/2.5" CMOS, Color, Aptina MT9P001

5.0M Pixels, Maximum Photo Resolution 2592*1944
Pixel Size 2.2um*2.2 um
Effective Image Size 5.70(H) * 4.28(V)mm, (7.23mm Diagonal)
Frame Rate 1280*720/15 Fps, 640*480/30Fps
Dynamic Range 66.5dB
SNR 40.5dB Max
ADC 12 Bit, On Chip
Shutter Type ERS, Auto
White Balance Auto
Connect Standard C-Mount Interface
Specification of Main Body
Main Body of MLP.023066  Polarizing Microscope
Infinity Gemel Trinocular, 30° Inclinded, 360° Rotatable, Interpupillary Distance 54~75mm, Diopter Adjustable +/-5°

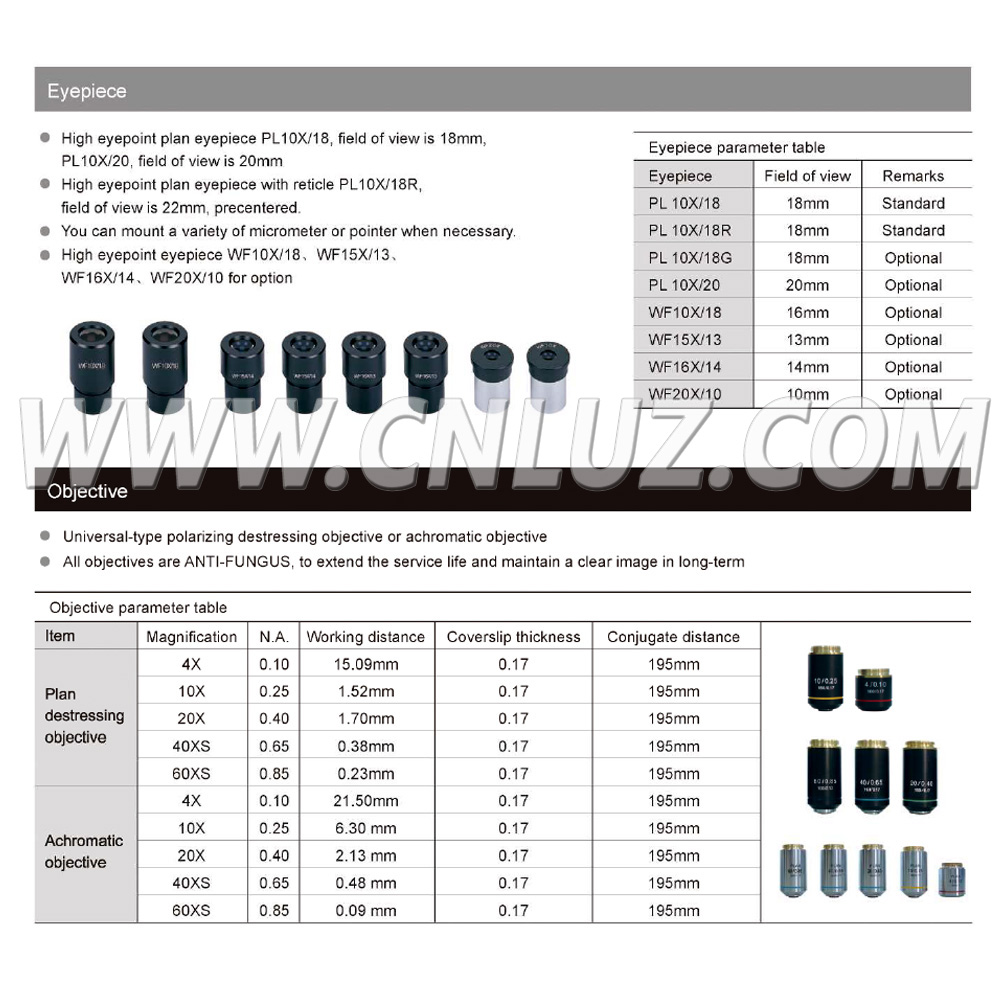

High Eyepoint Plan PL10x/18mm
Infinity Plan Stress Free Objective 4x / 0.10
Infinity Plan Stress Free Objective 10x / 0.25
Infinity Plan Stress Free Objective 40x / 0.65
Reversed Quadruple
Coaxial Coarse & Fine Focusing, With Tension Adjustable and Limited Stopper, Coarse Focus Range 28mm, Fine Focusing Precision 0.002mm
Round Stage Dia.160mm, 360° Rotatable, 1° Increments, a Dose Value of Vernier 6', WIth Locking Device
Special Metal Composing, Particularly Craftwork, Wear-Resistance and Resisting Corrode, with Micrometer 0.01mm Increments
Koehler Abbe Condenser 1.25, Stress Free
Transmit Illumination: Built-in Koehler Illumination, 6V30W Halogen Lamp, Precentered, With Continuously Intensity Control
Filter Yellow, Dia.45mm

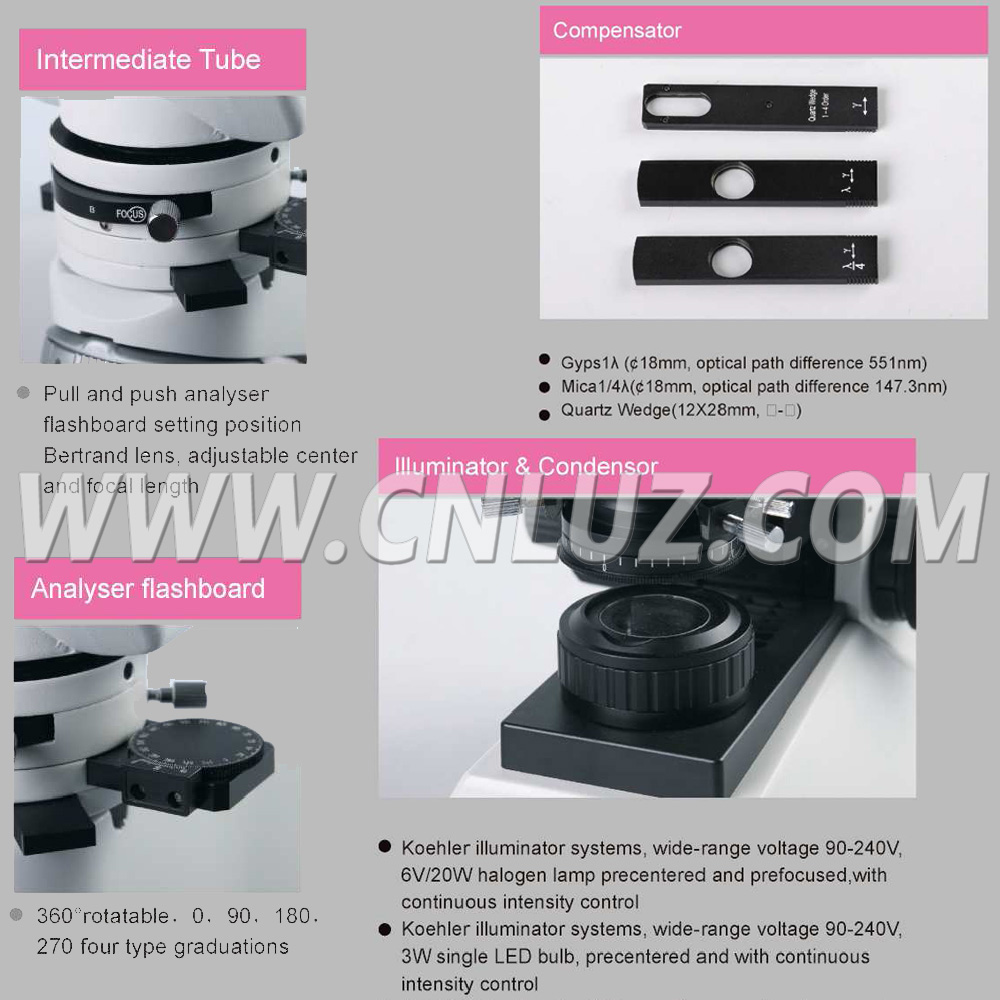

Polarizing Intermediate Tube, with Built-in Analyser, 90° Rotary and Can Shift Out the Optical Way,
  • Bertrand Lens,
  • Polarizer, 360° Rotatable, 0,90,180,270 Four Type Graduations
  • Analyser, 360° Rotatable, 2° Increments, a Does Value of Vemier 6'
  • Gyps 1λ , Dia.18mm, Optical Path Difference 551nm
  • Mica 1/4λ , Dia.18mm, Optical Path Difference 147.3nm
  • Quartz Wedge 12*28mm
Power 90-240V Wide Voltage
