WIFI Digital Portable Metallurgical, 5M, 100X~500X_IHPVISION:Microscope,Digital Vision

MDM.019005WIFI Digital Portable Metallurgical, 5M, 100X~500X

WIFI Digital portable metallurgical scope!

Get rid of various cables!

This is an ideal portable metallurgical scope for industry inspection.Used in oil and gas pipelines, bearings, foundry industry, boilers and other industries, is indispensable microstructure and surface inspection tool.
Coaxial LED lighting can work continuously for 48 hours

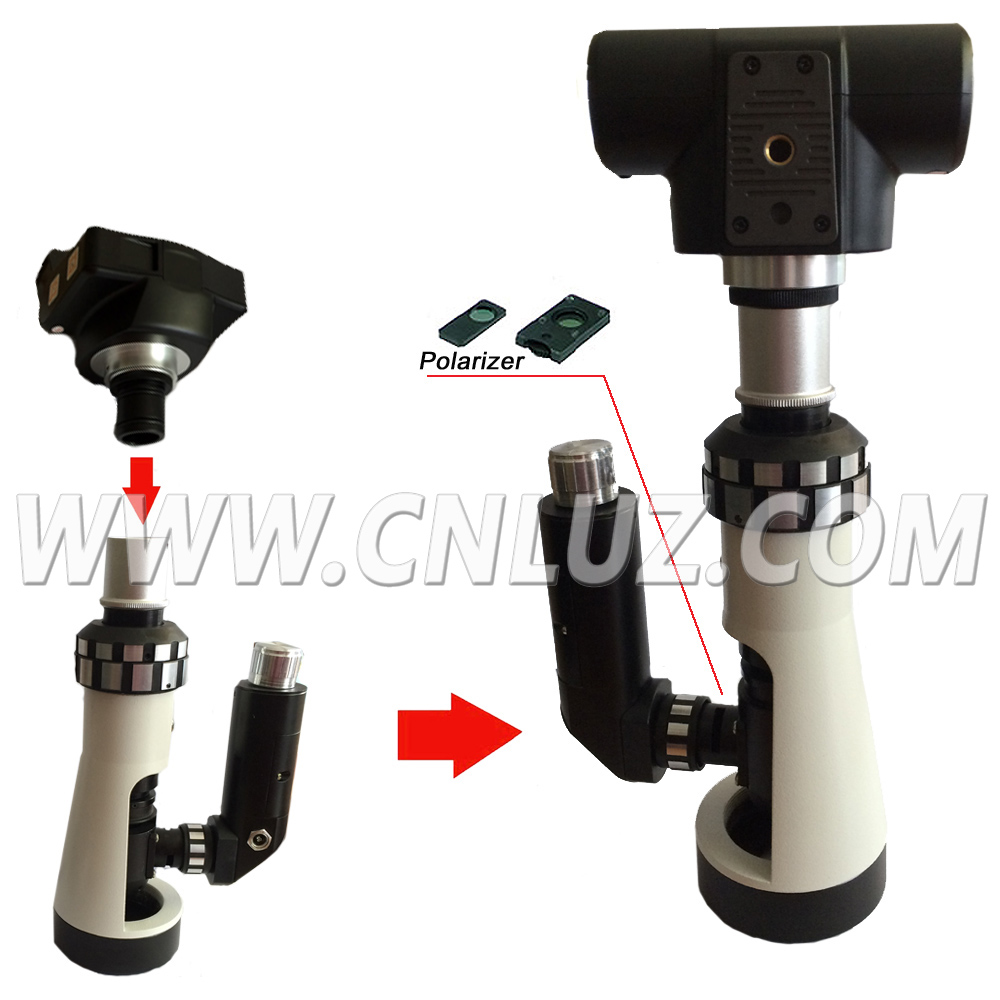

Being intersected polarizing device

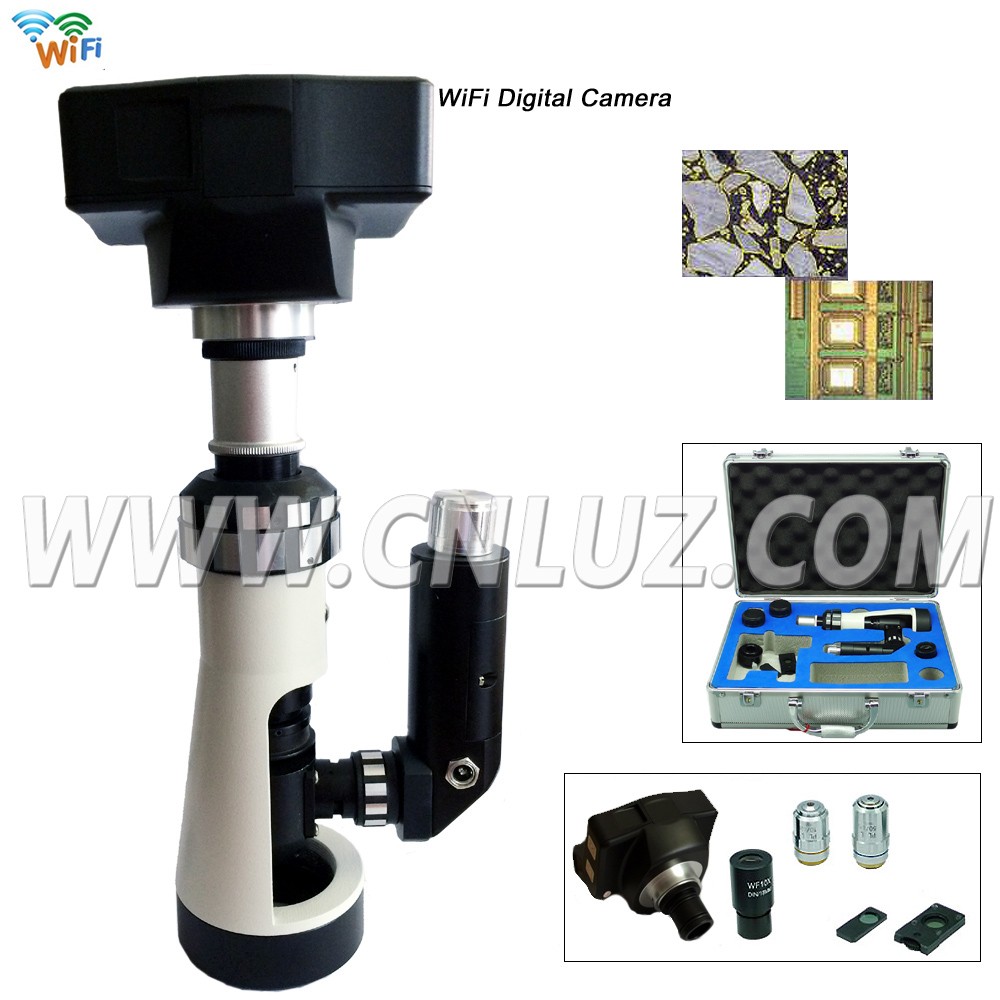

5.0M WIFI Camera

Specification	MDM.019005 WIFI Digital Portable Metallurgical Kits
Total Magnification	100X~500X
Eyepiece	WF10X/FN18, Dia 23.2
LWD Plan Objective (no cover glass)	PLL 50X/0.65 WD=0.5mm
LWD Plan Objective (no cover glass)	PLL 10X/0.25 WD=7.3mm
Mechanical Tube Length	160mm
Focusing	Coaxial coarse/fine focus system, range:36mm
Polarizing Kits	Polarizer and Analyzer
Light Source	Coaxial illumination, build-in LED rechargeable, brightness adjustable
WIFI Digital Camera	Pixel	5.0M
	Max Resolution	2592x1944
	Pixel Size	2.4um x 2.4um
	CCD Sensor	1/1.8"
	Sensor Size (mm)	5.70x4.28
	Sensitivity(@550nm)	0.53v/lux-sec
	DynamicRange	70.1dB
	SN Ratio	38.1dB
	Frame Rate	YUV output: 640x480@30fps,800x600@20fps,1280x960@10fps, 1280x720@10fps,2592x1944@5fps MJPG output: 640x480@40fps,800x600@40fps,1280x960@40fps, 1280x720@40fps,2592x1944@30fps
	Exposure	Manual/Auto, .9ms - 320ms
	Output	WIFI, LAN
	A/D Conveter	12-bit on chip,10-bit to pc
	White balance	Automatic White Balance/Automatic Exposure
Packing info	Portable aluminium case

Item	Optional Accessories
Digital Adapter	For Canon EOS Digital Camera
LWD Plan Objective Non-cover glass	PLL20 WD=8.6mm
	PLL60 WD=1.34mm
	PLL80 WD=0.96mm
	PLL100 WD=0.4mm
