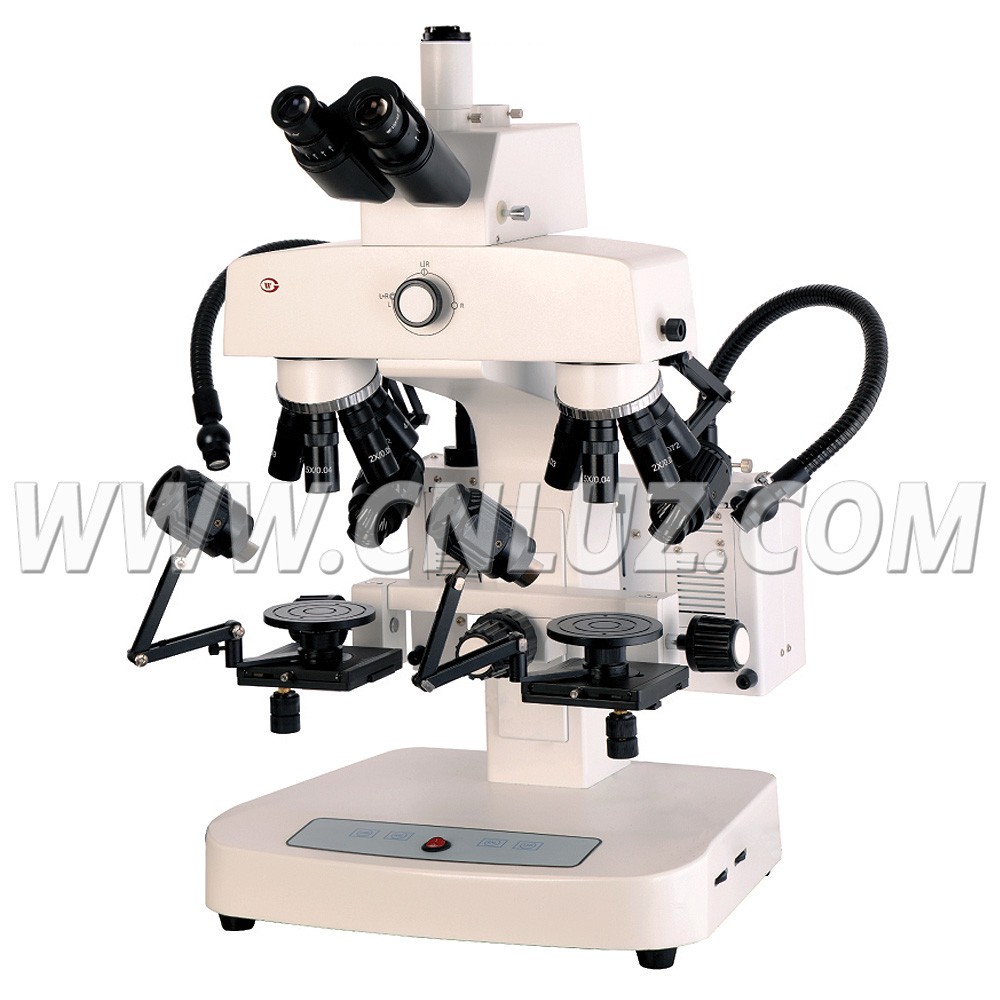

MCF.043002Forensic Comparison Microscope, CCD, 2x~240x
  • /usr/575/images/Products/Y/57519186.jpg
  • /usr/575/Picture/Y/11568.jpg
  •
  •

Comparison microscope is a special instrument , which can observe the images of both the left and right objects at the same time through two eyepieces, and make a macro or micro comparison on two or more objects. This instrument is used for a wide range of forensic investigations including ballistics, toolmark, and document comparison.

Specification
MCF.043002
Magnification 2x~240x
Head Bionocular Head, 30° Incline, Interpupilary Distance 48~75mm, Diopter +/-5 Adjustable

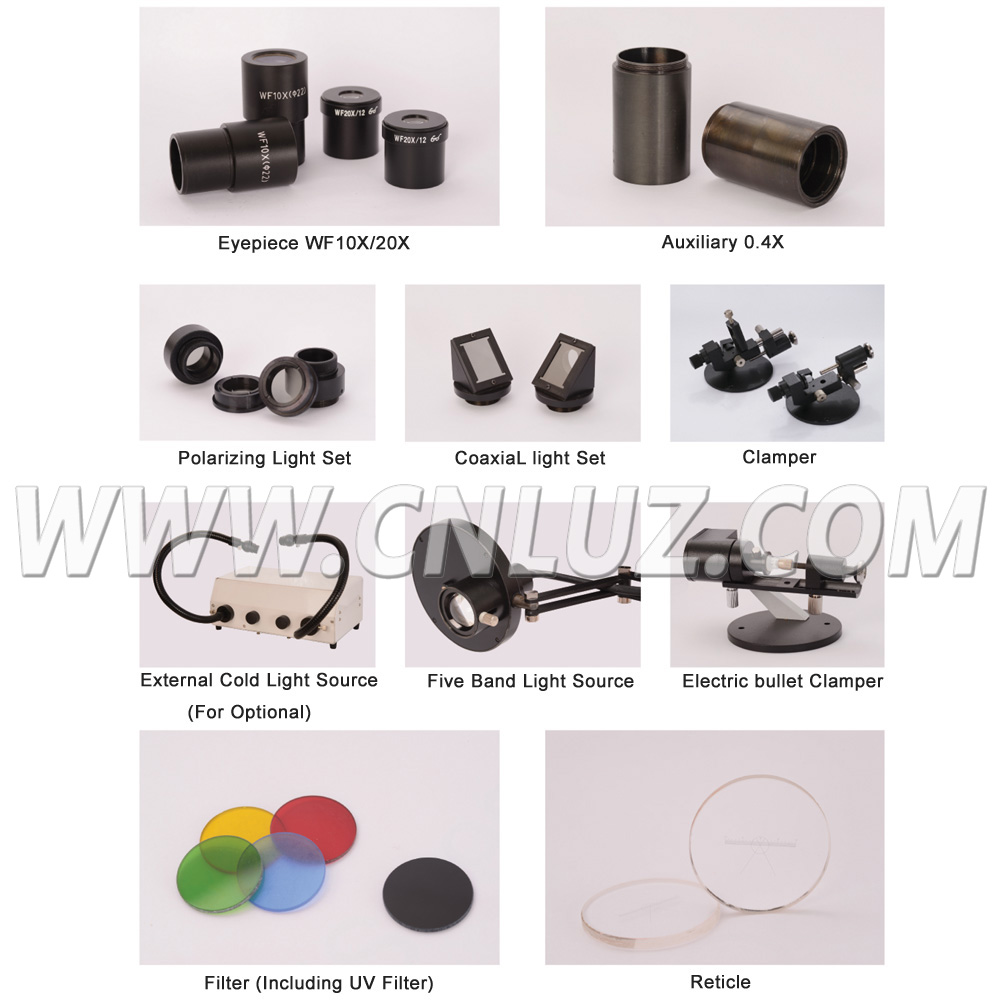

Eyepiece
WF10x/22mm, High Eyepoint
WF20x/12mm, High Eyepoint
Objective
LWD Infinity Plan Achromatic Objective 0.5X
LWD Infinity Plan Achromatic Objective 1X
LWD Infinity Plan Achromatic Objective 1.5X
LWD Infinity Plan Achromatic Objective 2X
LWD Infinity Plan Achromatic Objective 4X
LWD Infinity Plan Achromatic Objective 6X
Auxiliary Lens
0.4x
2X
View Field
Dia. 2.3~62mm
Nosepiece 6 Hole Click Stop Nosepiece
Working Stage
Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm
Round Titable Working Stage Dia. 90mm, 0-45° Inclined, 360° Rotatable
Square Manual Working Stage 90*90mm, Moving Range 54*54*54mm
Bullet Holder Bullet Holder Set for all kinds of Bullet, Cartridge and other Objects
Light Source
5W LED Cold Light, High Brightness, Brightness Adjustable
12V50W Fan Cooling Strong Halogen Light, Brightness Adjustable
Coaxial Light Lens, to observe in deep hole, or smooth object surface
Polarizing Light Lens, to eliminate flare lights and dazzling lights
Transmit Bottom Light
Ultraviolet Light Lens
Filters: Red, Blue, Yellow, Green
Working Distance 101mm
Separation Line Adjust
Seperation Line Adjust System in Back, with Special Designed Adjust Driver
Magnification Correct
Magnification Correction System, with Correcting Lens
CCD Camera
Built-in 3.0M High Resolution Color CCD Camera, USB 2.0 Output, 2048*1536 Pixels, Pixel Size 3.2*3.2um
Adapter
Front View Photo Adapter for SLR Digital Camera
For user to view and take photo easily
0.5x CCD Adapter
Power
80~240V Wide Range Voltage
Dimension
Instrument Size 43*34*65cm
Packing
Strong Aluminum Case + Carton, Size 85*50*68, G.W. 65 Kgs

Item
Optional Accessories
Software
Professional forensic image analysis software
Light Source
150W Cold Light Source, with Optical Fiber & Light Collector
